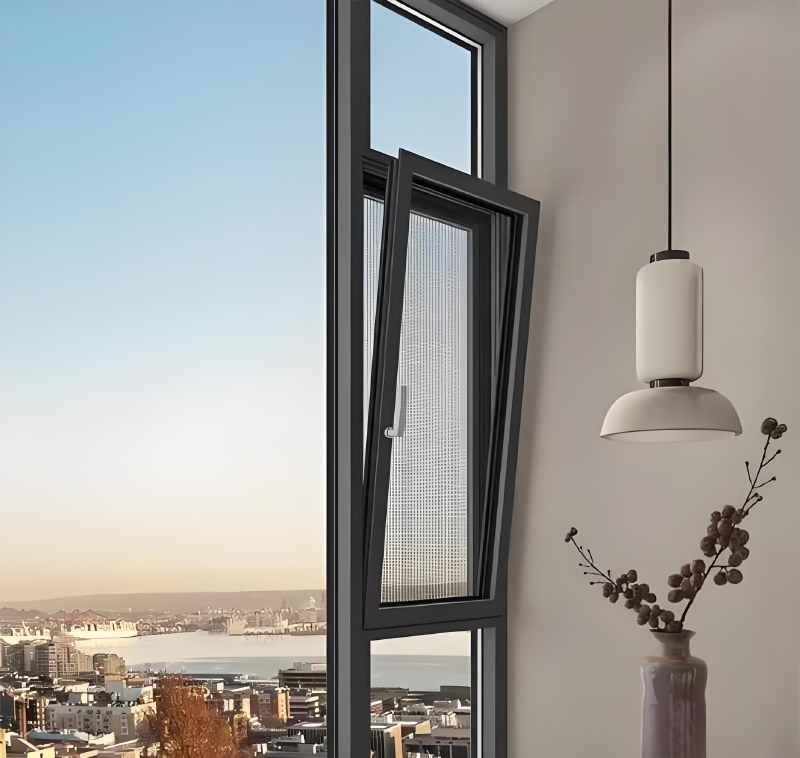

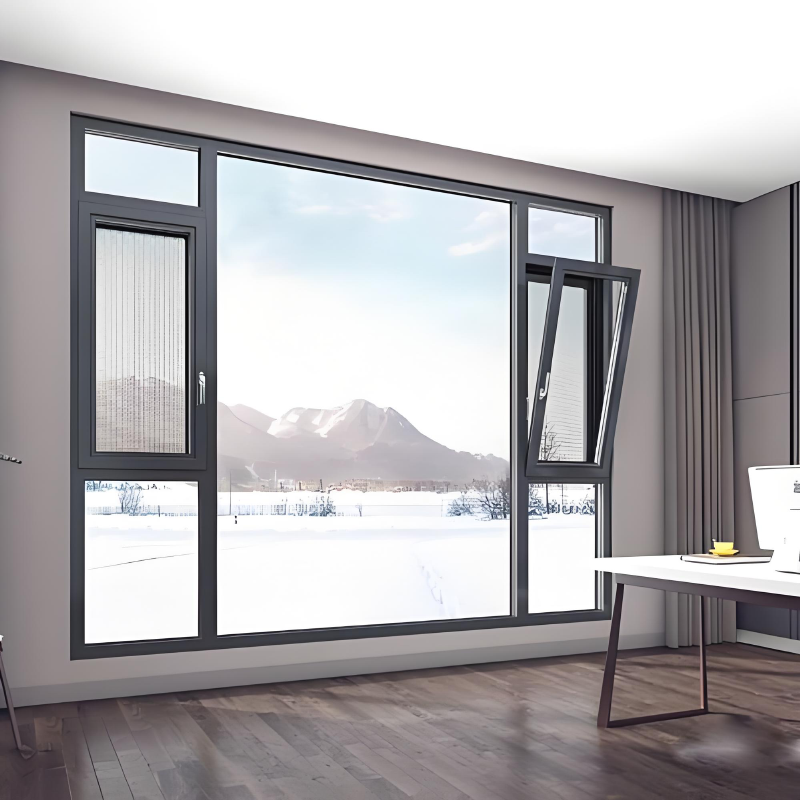

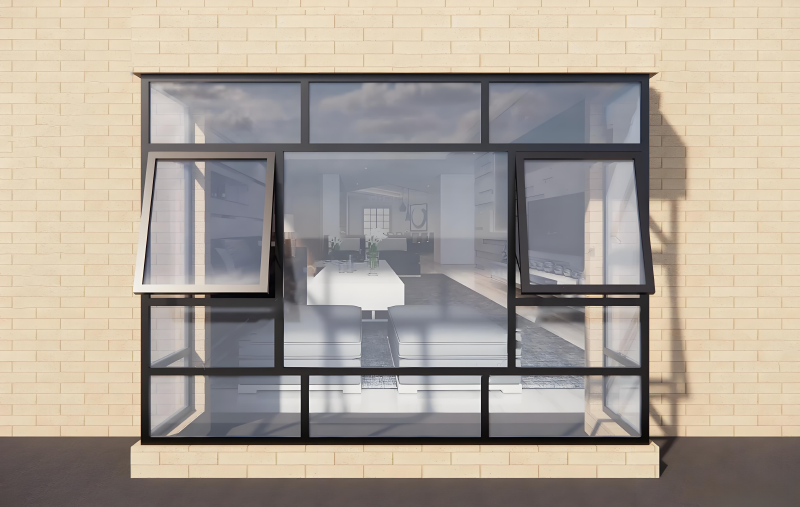

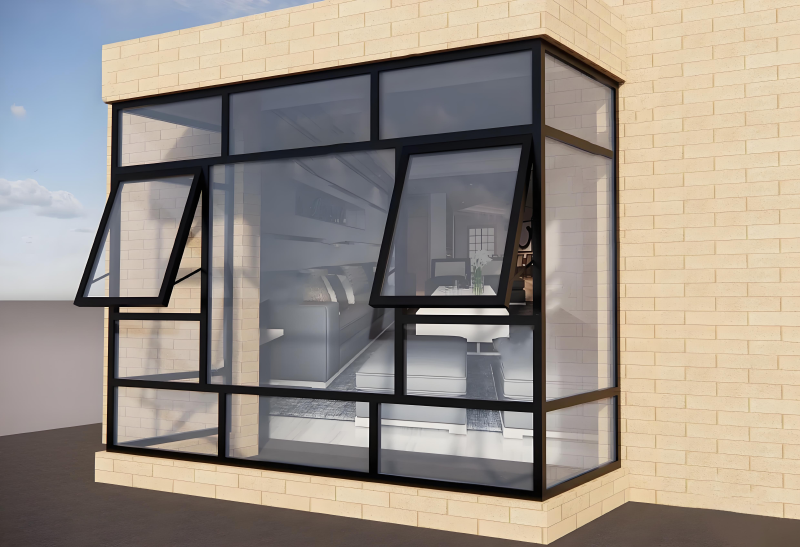

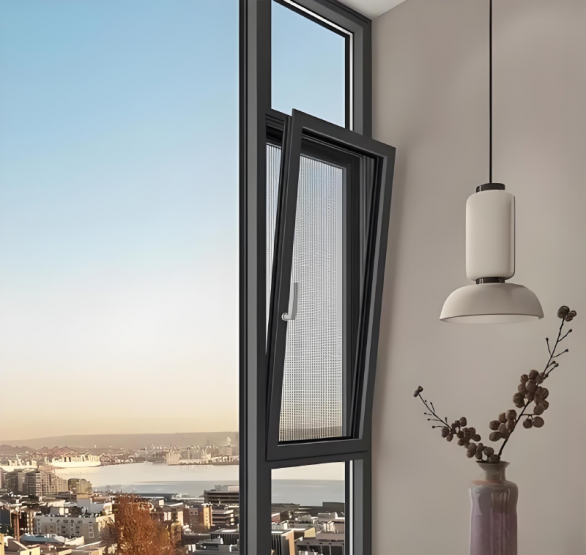

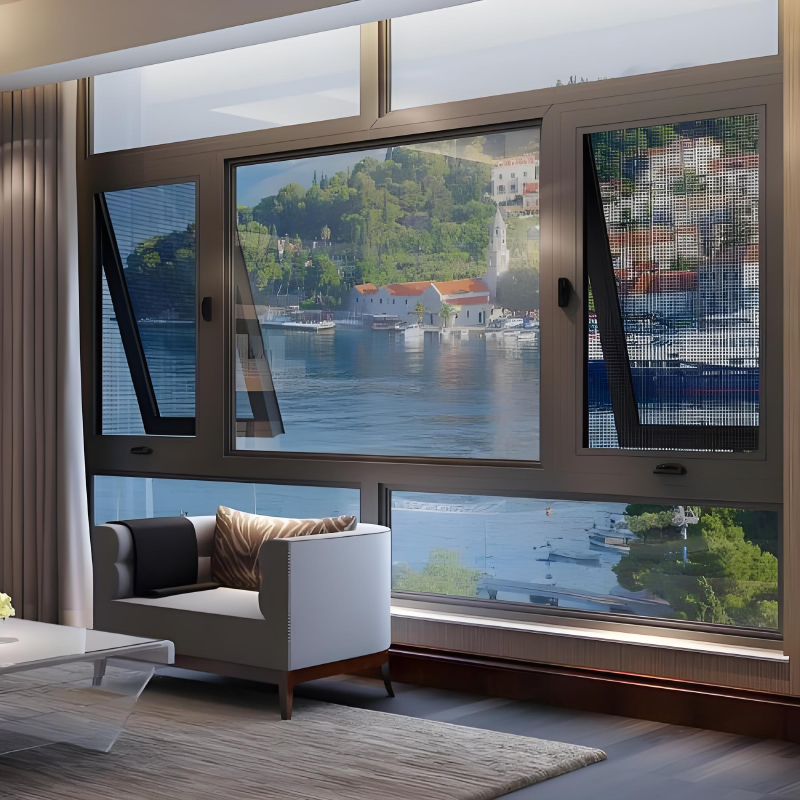

Aluminum awning windows have hinges mounted on the top side of the window, allowing the window to open outward. According to the different ways of opening, top-hung windows can be divided into external opening Aluminum awning windows and internal opening inverted Aluminum awning windows. The hinge of the external casement window is mounted on the upper side of the window, which opens to the outdoor direction; the internal casement window can be opened indoors flat or tilted open!

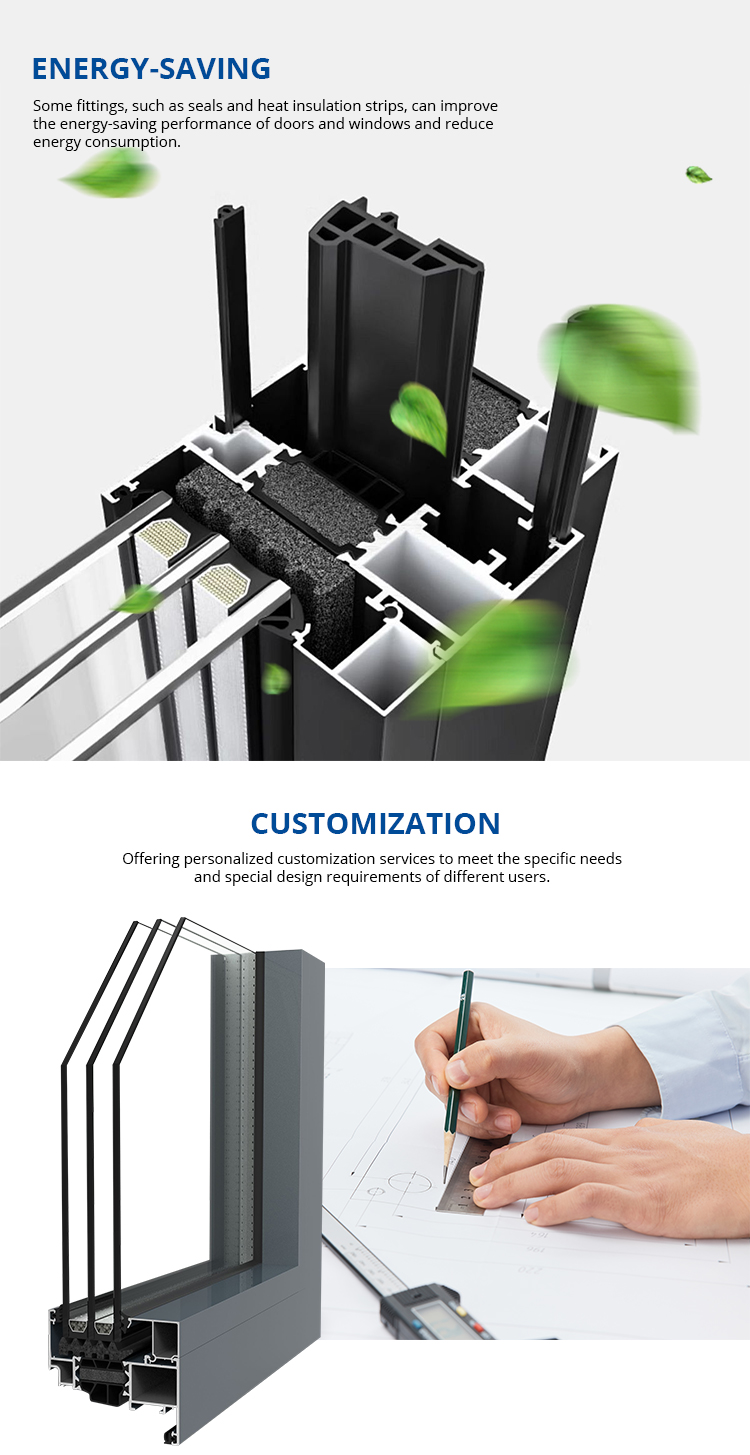

We use aluminum alloy profiles for windows and doors, which have high strength and corrosion resistance. Linkage hardware and handles are arranged around the sash to ensure various functions for indoor operation. When closed, the perimeter of the sash is fixed to the window frame, which greatly enhances the security and anti-theft performance of the window. In addition, the sealing and insulation of the windows and doors is ensured through multi-point locking around the sash, allowing the indoor air to remain fresh while preventing rainwater from drifting in. From energy-saving benefits to a sleek, modern look, Aluminum awning windows have you covered. Contact us today to learn more about our aluminum windows and doors collection!
Features:
● Color options: white, black, grey
● Surface treatment: powder coating, anodized
Benefits:
● Provides excellent insulation
● Enhances the aesthetics of your home
● Durable and long-lasting
Don't miss out on our factory sale! Get your hands on this hot-selling product from YA JI Co., Ltd. today.
Model | Aluminum awning window |
Glass Installation way: | Install inside |
Open Mode: | Open from above or open from below |
Size(mm) W*H: | customization size (1800*2100) |

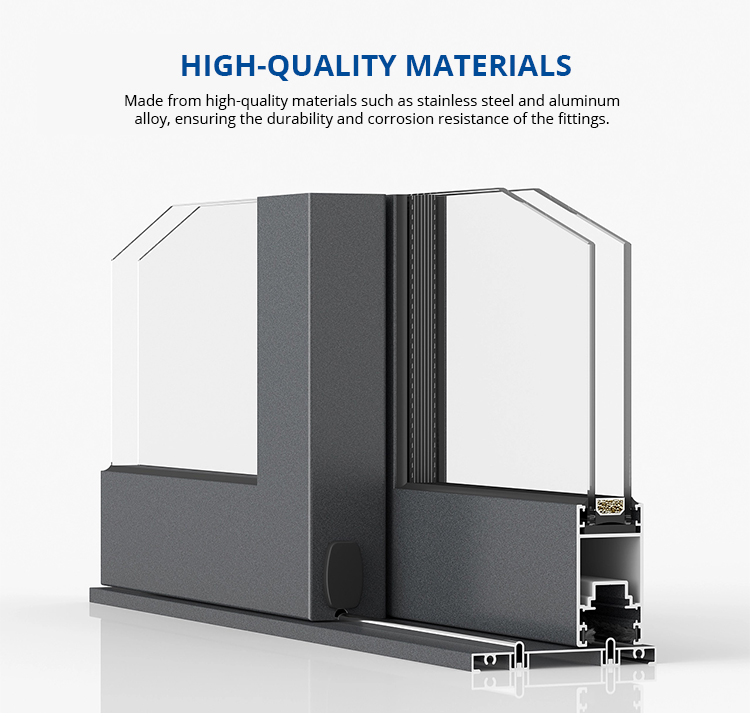

Aluminum alloy frame Profiles: | Material: 6063-T5 high quality aluminum profiles Thickness: 1.4 -2.0mm |
Frame Surface Treatment and Color Option: | Powder coating: Sky Grey, Dark Black, White or customized Anodized: Light grey or customized PVDF Coating : Golden,Light grey Wood Grain: Gold Paulownia, Grey Alder Wood |

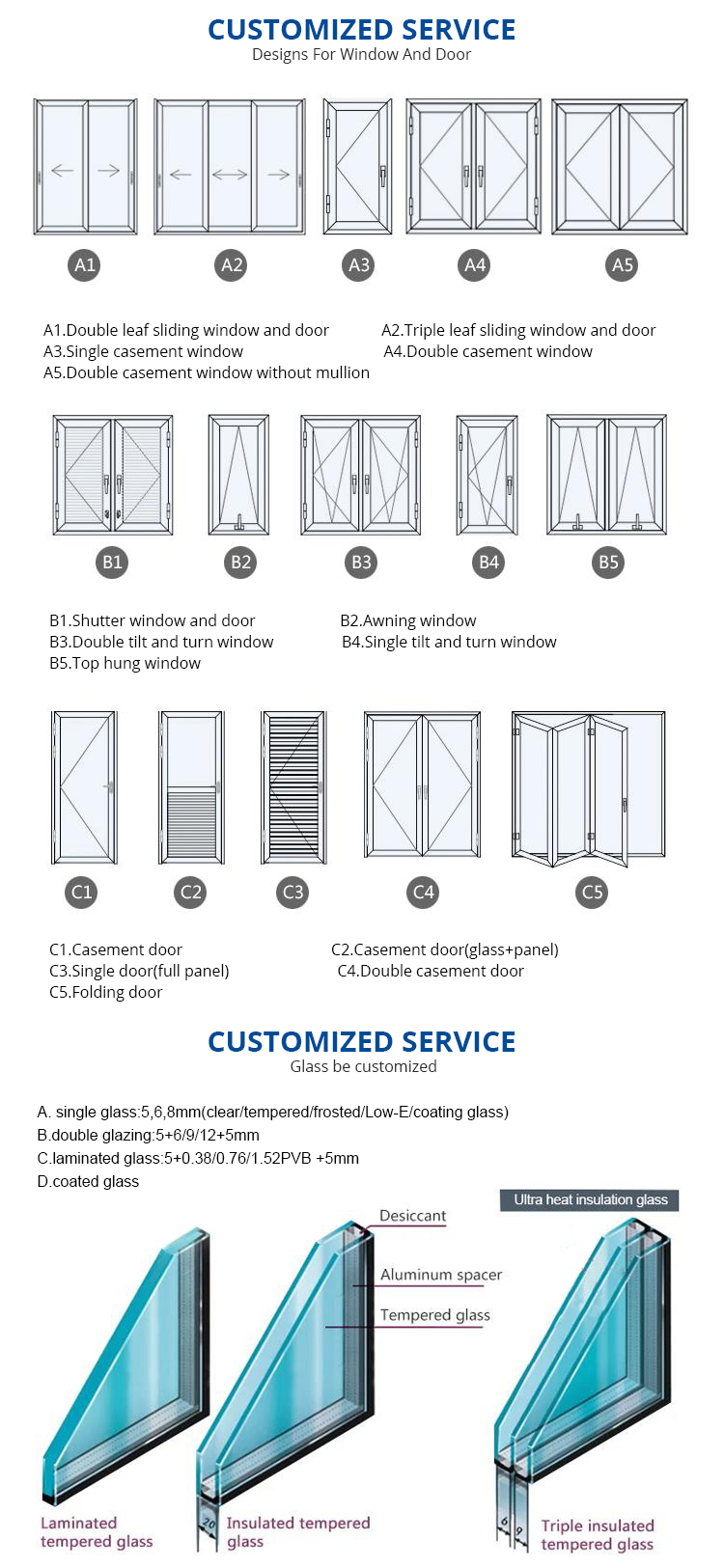

Glass specification and Option: | Double tempered glazing: 4mm+15A+4mm(standard), 5mm+12A+5mm (Optional), Color: Clear, gray, green, brown. Material: Double glass, tempered glass, insulating glass, reflective glass, laminated glass, low-E glass, bulletproof glass Craft: flowers, mirror flowers, decoration bars, frosted |
Hardware Option: | Chinese brand (Facatory standard) erman brand (HOPPE, ROTO, GU) |

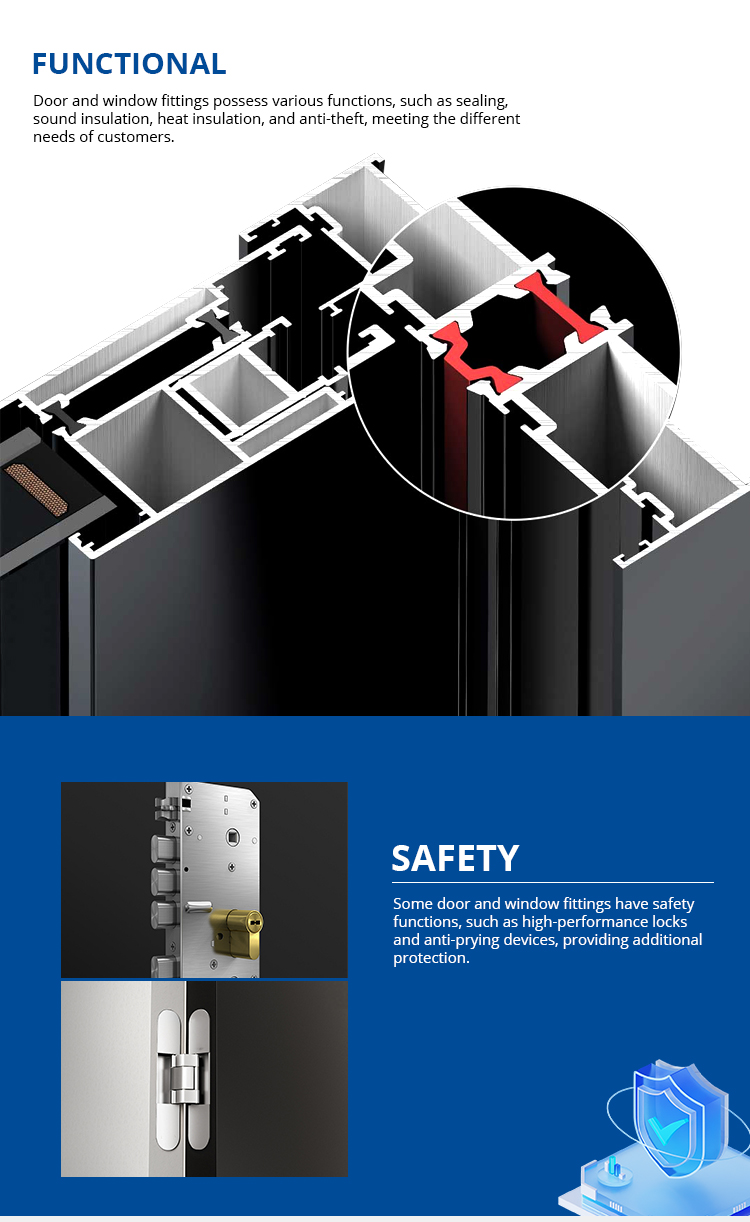

Locking details: | With Patented four sided six points lock system, that more safer and more sealed. Lock points and locks base are made of 304 stainless steel, which is stronger and anti-oxidant. |
Mesh Option: | Stainless steel security mesh Aluminum security mesh |
Package: | Protection foam with heat contracted plastic film/ wooden packing or customer's requirements |
Parameters: | Aluminum glass awning window Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 paAir permeation resistance: 70/150 Water resistance: 450mm |
